Homemade wooden Bluetooth and infrared stereo

Posted: Thu Sep 22, 2016 8:16 am
by Wkhdkl
Here is the finished product. If I plus a string it seems like baymax.LOL
I bought a storage box and ask people punching two holes for me.
I dig the other holes with blade. It makes my hands senseless.

My blue print.
Stereo bluetooth module the foot were tiny made them difficult to handle.
minimum Single chip microcomputer system...Insert the MCU will burning program and then connect a infrared sensor circuit is ok
Charge + protection module, comes out two LEDs(were bought from http://www.kynix.com/Product/Cate/463.html) I'm not very expert in electronics. So I don't know if I choose the good or right Leds.I f you think there are something wrong with the LEDs .PLZ let me know.
I can't spare my hands to take photos when I made it. So the pictures are not complete.

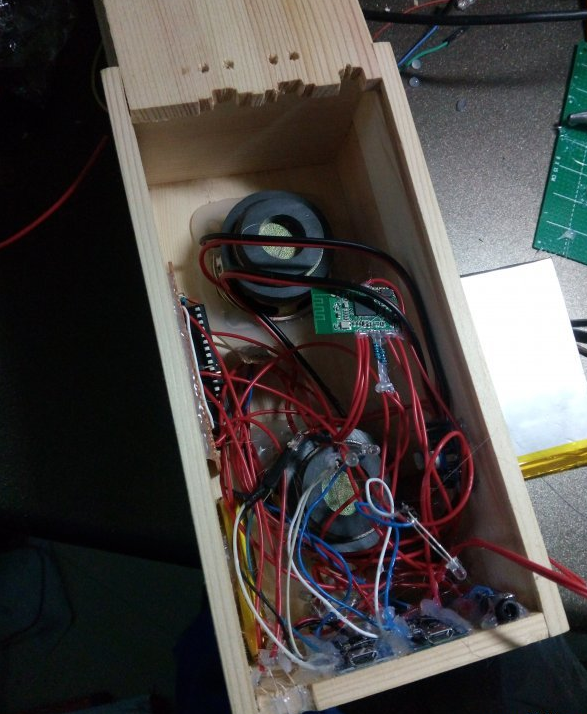

Image Enchased! There are too many wires.....seems a little horrible. hot melt adhesive for three times
A mistake came out I have to cut some wood.
Ok ! Done ! I have spend several days to adjust and then finally made it. My hands ......
This is my first thread, i HOPE you can enjoy it !
BTY, this is the gift I want to give my girlfriend. Really hope she can love it.
