SDR4Everyone: Getting Started with the RTL-SDR and SDRUno

Over on his sdr4everyone blog author Akos has uploaded a tutorial that shows how to set up the recently released SDRUno with the RTL-SDR. SDRuno is a spin-off of the (recently acquired by SDRplay) Studio1 software. Although designed and tailored for the SDRplay, SDRuno also supports any radio with an ExtIO interface available, such as the RTL-SDR. The one limitation is that the maximum bandwidth of radios other than the SDRplay is locked to 1 MHz at most.

Akos’ post shows where to download and add the required ExtIO file (it’s the same one used for HDSDR) and how to start the RTL-SDR in SDRuno, as well as a quick tutorial on changing some settings and tuning.

We note that the fact that you need to install the ExtIO dll file to the documents folder seems to be a bug in the latest version at the moment. In future updates they may fix this, and then the ExtIO dll will go back to needing to be added to the C:\Program Files (x86)\SDRplay\SDRuno folder, as it was in previous versions. We’ve also heard one or two reports of users stating that they needed to add in the libusb-1.0.dll file as well, but we can’t confirm if this is actually required as none of our test PC’s have needed it.

Also, a recent post on Nobu’s blog shows how to get rid of the center DC spike in SDRuno by adjusting the Channel Skew Calibration. The post is in Japanese, but the gist of it is that you just need to adjust the fine tuning DC offset slider in the Channel Skew Calibration settings. Nobu also points out that a handy shortcut to getting the ExtIO window to display is to simply press the ‘H’ key.

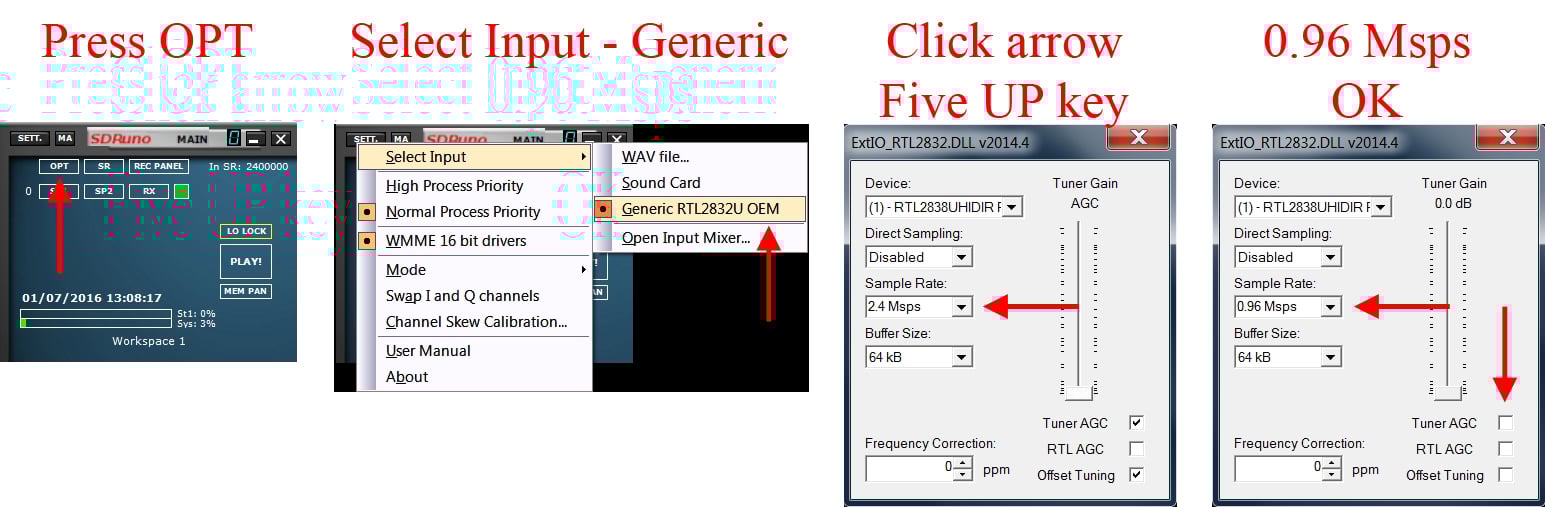

Setting up the RTL-SDR for use in SDRuno.
Setting up the RTL-SDR for use in SDRuno.
