TechMinds Reviews our RTL-SDR Blog L-Band Patch Antenna + Horn & Dish Mod

Over on YouTube the TechMinds YouTube channel has uploaded a review of our RTL-SDR Blog L-Band patch antenna which we recently released. TechMinds tests the antenna on a STD-C Inmarsat channel with the Scytale-C decoder, and on various AERO ACARS transmissions with JAERO. Later in the video he also tests the patch antenna on Iridium reception using the Iridium Toolkit software. In all tests the patch is able to suitably receive the signal with either an RTL-SDR or Airspy SDR.

We also wanted to make a note about an additional tip regarding polarization that many people using the antenna seem to have missed. As Inmarsat signals are LHCP polarized, it is important to not only point the antenna towards the satellite, but also to rotate the antenna to match the polarization until maximum SNR is achieved. The rotation can make the difference between strong signals and nothing received at all.

RTL-SDR Active L-Band Patch Antenna For Inmarsat / Iridium / GPS

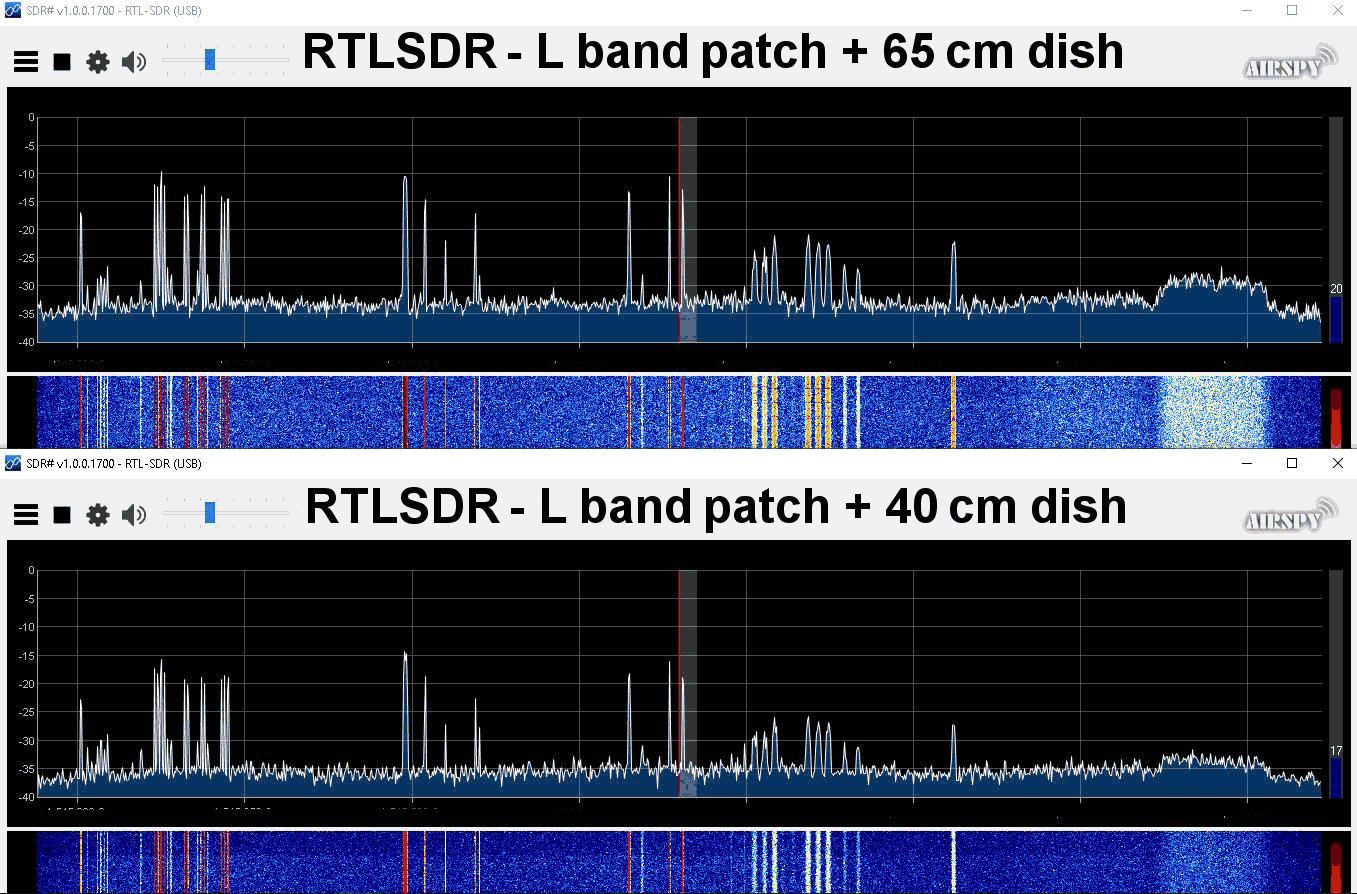

We've also recently seen a user 'Bert' who has needed to boost the signal strength as he was running the patch inside and at a location in northern Europe with poor reception of Inmarsat. To boost it he simply added a metal horn over the patch made from an old aluminum box, and also a back plate reflector. He notes that this improved his SNR on AERO 10500 from 8 - 9 dB, up to 12 - 14 dB. He also tested using the patch on a dish antenna, and found very good results too.

Aluminum Horn Added to L-Band Patch
Aluminum Horn Added to L-Band Patch
L-Band Patch Antenna on Dish
L-Band Patch Antenna on Dish

Mike Tests our RTL-SDR Blog L-Band Active Patch Antenna on an SDRplay RSP1a

Over on YouTube Mike Ladd (KD2KOG) from the SDRplay technical support team has uploaded a YouTube video showing him running our recently released RTL-SDR Blog L-Band Active Patch antenna on an SDRplay RSP1a. In the video he receives and decodes AERO signals from his car with his RSP1a powering the active patch antenna via the built in bias tee.

If you didn't already hear, we recently released an active (amplified + filtered) high performance patch antenna designed for receiving L-Band satellites such as Inmarsat, Iridium and GPS. The patch is designed to be easily mountable outside on a window, surface, stick, tree branch etc as it comes with easy to use mounting solutions and extension coax, and is enclosed in a fully weather proof plastic cover. If you're interested the product is available over on our store for US$39.95 with free shipping.

You also might want to keep an eye on Mike's YouTube channel, as he notes that in the yet to be released part 2 video he will be giving away the antenna in a competition.

RTL-SDR Blog L-band patch antenna part 1

L-Band Patch Antenna Set Preorder Sale Ending Soon – Shipping Begins Next Week

Just a heads up that the preorder sale on our new L-Band Patch antenna set will be ending October 21 as we are almost ready to ship the units out. After the preorder sale ends the pricing will rise from $34.95 to $39.95 USD.

PREORDER PRICING: 34.95 USD incl. free shipping.

Please see our store to preorder the unit.

Preorder has now ended and shipping will begin shortly. Thank you!

The product is a ready to use active patch antenna set that is designed to receive L-Band satellites such as Inmarsat, Iridium and GPS. It is enclosed in a waterproof plastic case, and can easily be mounted to a window using the provided suction cup and 2M coax extension cable. It can also be mounted to almost anything else using the included flexible tripod legs, or if you prefer, use the standard 1/4" camera screw hole to connect it to any mount that you like.

The antenna is powered via 3.3V - 5V bias tee power, so any bias tee capable SDR such as our RTL-SDR Blog V3 can be used to power it.

In terms of performance see our previous post that announced the product for sample screenshots and reception tips.

The RTL-SDR Blog L-Band Satellite Patch Antenna Set
The RTL-SDR Blog L-Band Satellite Patch Antenna Set
Inmarsat Reception
Iridium Reception

Testing a PCB Patch Antenna and Radiosonde QFH Antenna for Inmarsat and Iridium Reception

Over on his YouTube channel Tech Minds has been testing some antennas for Inmarsat and Iridium L-Band satellite reception. Inmarsat is a satellite service that runs on geostationary satellites, and one can be received from almost anywhere in the world. There are various services, but the ones that are easily decodable are STD-C EGC and AERO. EGC contains text information search and rescue (SAR) and coast guard messages as well as news, weather and incident reports, and AERO is a form of satellite ACARS, and typically contains short messages from aircraft.

In the first video Tech Minds tests what appears to be an as of yet unreleased prototype PCB patch antenna being designed by NooElec. The PCB patch antenna is combined with a SAWBird Inmarsat LNA and an RTL-SDR. With it he's able to receive STD-C and AERO signals.

In the second video Tech Minds tests an L-Band QFH antenna salvaged from a Vaisala weather balloon radiosonde. The QFH is designed for GPS frequencies, but can potentially be used at the slightly higher Inmarsat and Iridium frequencies. Tech Minds combines the QFH antenna with a SAWBird Inmarsat LNA, but unfortunately finds that reception is too weak for any AERO decoding to be possible. However, when used on the higher Iridium frequencies the antenna works well, and he's able to decode packets with Iridium Toolkit.

New Inmarsat Antenna from NooElec

Testing A QFH Antenna For Inmarsat And Iridium

RTL-SDR Blog L-Band Patch Antenna Preview

We note that over the last several months we have been working on our own L-band patch antenna that will cover Inmarsat, GPS and Iridium frequencies all in one. We expect manufacturing to be completed near the end of the month, or early next month.

The antenna is a ceramic patch, and will come in a waterproof enclosure. It will be possible to easily mount the antenna on a window or elsewhere using the standard suction cup and bendy legs tripod included with our dipole kits. Target price is US$39.95 including the suction cup, tripod, 2M coax and shipping, but we may have it initially on sale for a lower price.

This is cheaper than buying an Inmarsat & Iridium LNA, but a bit more than the SDR-Kits patches that they brought out a few weeks ago. Although performance of our patch is much better. Keep an eye out for the initial information post coming in the next few days.

RTL-SDR Blog L-Band Patch Preview (RTL-SDR for Scale)
RTL-SDR Blog L-Band Patch Preview (RTL-SDR for Scale)

Mike Tests out L-Band STD-C and AERO with a Low Cost Modified GPS Antenna

SDR-Kits.net have begun selling low cost GPS antennas that are modified to receive the Inmarsat satellite frequencies between 1535 MHz to 1550 MHz. They also have a version for Iridium satellites that receives 1610 MHz to 1630 MHz. The antennas are powered by a 3-5V bias tee, so they should work fine with SDRplay, Airspy and RTL-SDR Blog V3 units.

Mike Ladd from SDRplay has recently sent us a guide to receiving AERO and STD-C messages on L-band with the SDR-Kits antenna and an SDRPlay unit running SDRUno (Megaupload link).

AERO messages are a form of satellite ACARS, and typically contain short messages from aircraft. It is also possible to receive AERO audio calls. STD-C aka FleetNET and SafetyNET is a marine service that broadcasts messages that typically contain text information such as search and rescue (SAR) and coast guard messages as well as news, weather and incident reports. Some private messages are also seen. To decode AERO Mike uses JAERO, and for STD-C he uses the Tekmanoid STD-C decoder.

Mike has also created a very handy bank of frequencies for the SDRUno frequency manager which can be downloaded from here.

We note that if you're interested in waiting, at the end of September we will have an L-band patch antenna set available too. Our antenna will work from 1525 up to 1637 MHz. Prototypes have shown have shown good Inmarsat, Iridium and GPS reception. More details coming next month when manufacturing gets closer to finishing up.

Screenshot of the Tekmanoid Decoder from Mikes Tutorial
Screenshot of the Tekmanoid Decoder from Mikes Tutorial

Turning an old Radiosonde into an Active L-Band Antenna

VK5QI's Radiosonde Collection
VK5QI's Radiosonde Collection

Over on his blog VK5QI has shown how he has was able to re-purpose an old radiosonde into a wideband active L-band antenna. Radiosondes are small packages sent up with weather balloons. They contains weather sensors, GPS and altitude meters and use an antenna and radio transmitter to transmit the telemetry data back down to a ground station. With a simple radio such as an RTL-SDR and the right software, these radiosondes can be tracked and the weather data downloaded in real time. Some hobbyists such as VK5QI go further and actually chase down the weather balloons and radiosondes as they return to earth, collecting the radiosonde as a prize.

VK5QI and his friend Will decided to put some of his radiosonde collection to good use by modifying one of his RS92 radiosondes into a cheap active L-band antenna. They did this by first opening and removing unnecessary components that may interfere such as the main CPU, GPS receiver, 16 MHz oscillator, SAW filters and balun. They left the battery, LDO's, LNA's and Quadrifilar Helix GPS antenna which is tuned to the GPS L-band frequency. Finally they soldered on a coax connector to a tap point on the PCB and it was ready to use.

They then connected the new antenna to a RTL-SDR V3 and fired up GQRX. They write that their results were quite promising with several Inmarsat and Iridium signals being visible in the spectrum. VK5QI also used gr-iridium with the antenna as was able to decode some Iridium signals.

Modified Radiosonde L-Band Antenna connected to a RTL-SDR V3.
Modified Radiosonde L-Band Antenna connected to a RTL-SDR V3.

Airspy HF+ Can Receive L-Band 1.2 GHz to 1.67 GHz

The Airspy HF+ is a much anticipated and recently released software defined radio that specializes in HF and VHF reception. However, one little known and not often advertised feature is that it can actually be used for L-band reception between 1.2 and 1.67 GHz as well. This means that it could be used for signals such as AERO, STD-C, Iridium, the 23cm amateur radio band and more.

Over on YouTube Adam 9A4QV has uploaded a video that tests the HF+ with Alphasat AERO signals at about 1.545 GHz. He notes that the sensitivity is quite good as it is able to receive the satellite signals directly with only the antenna connected and no external LNA used. Of course adding in an external low noise figure LNA and filter would improve the signal even further. Adam notes that reception on the 23cm amateur band (1240 MHz to 1300 MHz) is also quite good with sensitivity reaching about -130 dBm.

Airspy HF+ L-band satcom test

Scytale-C: A New Inmarsat STD-C Decoder + Tekmanoid STD-C Decoder Updates

Over on the BitBucket code repository a new open source decoder for Inmarsat STD-C called Scytale-C has been released. The software is available for Windows, and a ready to use binary .exe file can be downloaded from the downloads section of the BitBucket repo.

Inmarsat STD-C is an L-band geosynchronous satellite signal that transmits at 1.541450 GHz. This means that the signal can be received with a simple patch antenna, LNA and RTL-SDR dongle. The satellite is geosynchronous (stationary in the sky), so no tracking is required. On the STD-C channel you'll see messages mainly for mariners at sea such as weather updates, military operational warnings, pirate sightings/reports, submarine activity, search and rescue messages and more. If you are interested we have a tutorial based on other software packages available here which also shows some STD-C message examples. The tutorial can easily be adapted for use with Scytale-C instead.

We've also seen on Twitter that Scytale-C beta tester @otti has noted that a SDR# plugin based on Scytale-C seems to be in the works.

Scytale-C Screenshot
Scytale-C Screenshot

An Important Note on the Coding Ethics of Scytale-C + Tekmanoid Decoder Updates

We feel that it is responsible to make a note on coding and licencing ethics about this software. Originally the software was illegally decompiled by 'microp11' from the closed source Tekmanoid STD-C decoder written by Alex and re-released in a different programming language with a different GUI as the 'open source' B4000Hz software. After Alex took action and micrcop11 realized what he did was wrong he took B4000Hz down. Since then microp11 notes that he has written Scytale-C fully from scratch without the closed source code knowledge. But to be unquestionably legal a full two man clean-room rewrite would probably need to be done as once knowledge of source code is acquired it can be difficult to think of a separate implementation (a somewhat related post discussing this on StackExchange).

However, Alex has noted microp11's passion, and microp11's remorse at the initial decompilation and release of B4000Hz, and has decided to take the higher road and not pursue any further DMCA complaints. Instead he has kindly decided to allow the software to exist, but with acknowledgement of Tekmanoid included. We're glad that the matter was resolved amicably, but still if you use the Scytale-C software we would urge you to still consider the free or paid version of the Tekmanoid STD-C decoder to support Alex

Recently Alex has updated his software to include a spectrum analyzer and more appealing method of displaying EGC messages. Alex writes regarding his Tekmanoid STD-C decoder:

This software [Tekmanoid STD-C Decoder] is closed source and has been since it was first released around 2009. At that time I made a choice to keep the source private but share the executable EGC app for free with the public, so that others could have some fun on the L-band!

The "pro" EGC-LES version was developed in parallel the same year but kept private, nobody even knew it existed. Although I recognized its potential financial value I didn't take "advantage" of it. Firstly because it was a personal hobby project (can't put a price on intellectual property) and second, because I didn't want to help to further expose people's private communications to the open public.

In February 2017 a raw clone of my de-compiled code was made public, to be later withdrawn with an apology. That is the moment I decided to release the PRO version as payware to the public. Many new features present in today's PRO version have been proposed by users and my aim is to satisfy everyone's wishes.

Recently another similar project was released from the same author, with lots of documents to support the code and only minute traces of the initial de-compilation. This time one could indeed claim to have built it "from scratch" - codewise at least. The fact still remains that *part* of the knowledge (not 'code' necessarily) required to put it together was obtained from this initial reverse engineering process.

Despite the negativity surrounding this case, I decided to withdraw my takedown request on the project in exchange for an acknowledgement to the original Tekmanoid decoder, as this person himself wished to include from the start anyway.

To end it with another positive note, I can only hope this newcomer will bring something new to the scene, and that we will see some interesting things!

Below is a video of the updated Tekmanoid decoder.

Tekmanoid EGC+LES pro decoder

Update: Microp11 wrote to us after this post went out and wrote the following:

I just want to let you know that scytalec is not a re-write. It is another solution of solving the problem of decoding the Inmarsat-C. Written from scratch. Inadvertently any Inmarsat-C decoder in the 1.5GHz band will have the same the building blocks and they are now documented in detail in the bibliography published with my code. The information is hard to find. All the information is from publicly available sources only. Such that the code will be able to withstand the obstacles or remaining open source. The majority of the documentation is technical manuals, as they each in part reveal a piece of the puzzle, and collectively they contain an almost complete communication protocol. Some are books and they must be the specific revision mention within the bibliography. Moreover if any coder will read the documentation they will actually be able to write a better decoder as I found parts of it too late for a more elegant code writing. And this is the whole idea of scytalec, that anyone can do it if they put their mind to it. There is enough documentation to tackle the C-band as well. And giving enough time, I might be planning on doing that after the sdr# plugin I’m working at. Not alone, as I was and I am being helped by others to which I am grateful and their names were and will be mentioned within the code. Just so you will have an idea of how deep the documentation correctness went for this project, even if a code comment was incorrect, say I was referring to a frame as a “block” or “part” I would get an admonishing email on that. So yes, I have high reasons to stand by this code originality.
