A High Performance RTL-SDR ADS-B Receiver Build Guide

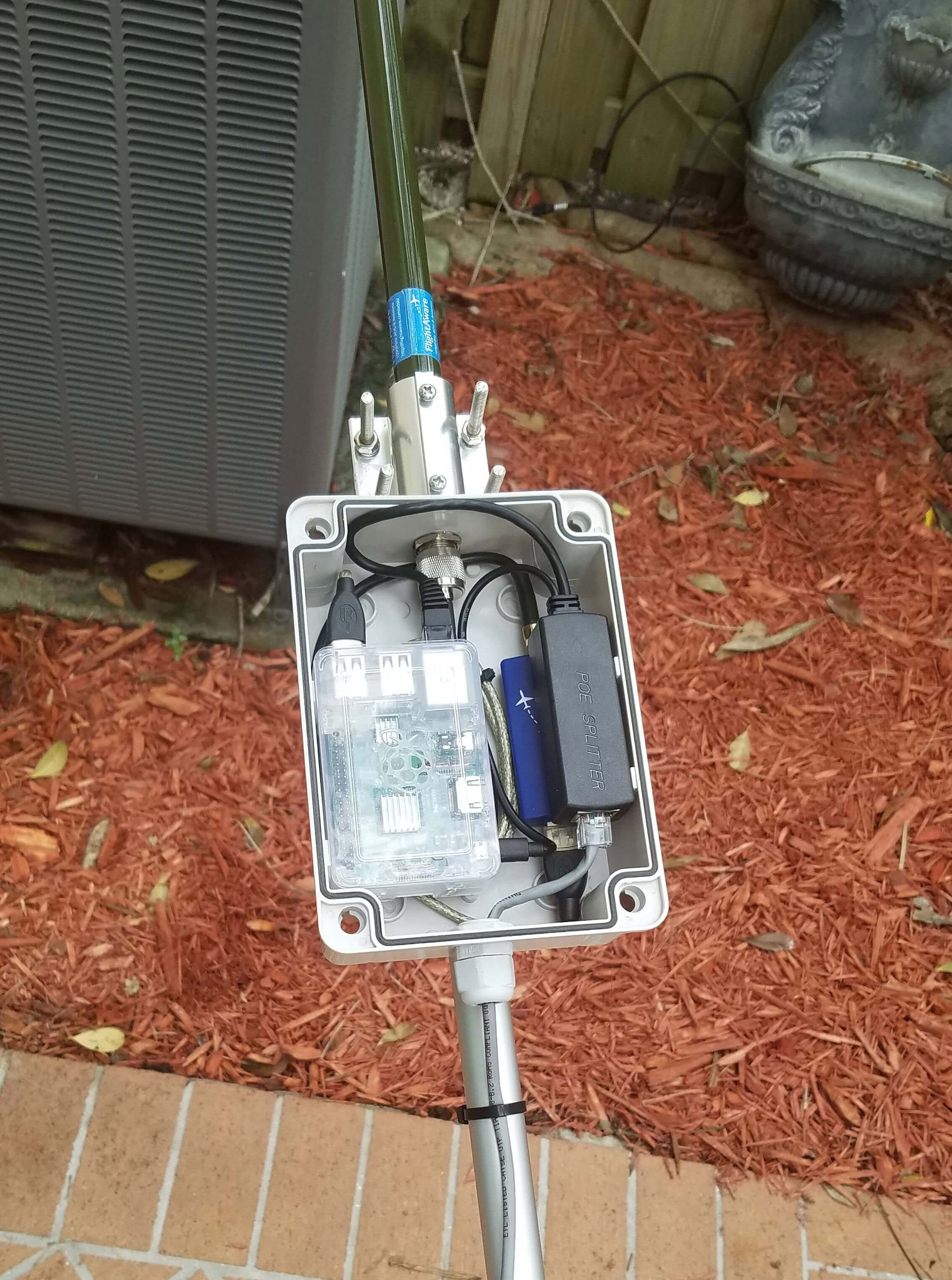

ADS-B Setup in an outdoor enclosure. Includes FlightAware ADS-B Antenna, FlightAware RTL-SDR Dongle, Raspberry Pi, POE Splitter.
ADS-B Setup in an outdoor enclosure. Includes FlightAware ADS-B Antenna, FlightAware RTL-SDR Dongle, Raspberry Pi, POE Splitter.

Over on Imgur and Reddit user Mavericknos has uploaded a very nice pictorial guide where he shows how he's built a high performance RTL-SDR based ADS-B receiver that can be mounted outside in a waterproof enclosure.

He uses a FlightAware dongle, which is an RTL-SDR optimized for best ADS-B reception when placed directly at the mast/antenna. For an antenna he uses the FlightAware ADS-B antenna, which we've reviewed in the past and found to be one of the best value ADS-B antennas available on the market. To process the data, a Raspberry Pi is used and it is powered via power over Ethernet (POE). If you didn't already know, power over Ethernet (not to be confused with Ethernet over powerline) is simply running power through unused wires inside an Ethernet cable. It is a convenient method of powering remote devices and giving them a network connection at the same time. The whole package is enclosed in a waterproof case, and the antenna attached to the top.

Putting the RTL-SDR and computing device at the antenna removes any loss from long coax runs, and the POE connection provides a tidy cabling scheme. The FlightAware dongle is a good choice for mounting directly at the mast or antenna because it has a built in low noise figure LNA. If using coax cabling instead, and keeping the RTL-SDR and Raspberry Pi inside, then it would be better to mount an LNA at the mast and power it through the coax via a bias tee.

All components in the build.
All components in the build.
