Building a Homemade Weather Radar with a HackRF or PlutoSDR and Salvaged Automatic RV Dish

After nearly being hit by a tornado that NEXRAD didn't see coming, Koakno decided to build his own DIY self-contained mobile weather radar built from a $5 salvaged RV satellite dome, a HackRF or PlutoSDR, and open-source software.

Koakno notes that NEXRAD (the US weather radar system) data is typically 4-6 minutes old, and from a radar station that is often 100+ miles away, resulting in warnings coming in too late or not being detected at all. Only professional local mobile Doppler radar trucks have the capability of detecting local tornadoes rapidly enough to take action. Koakno set out to recreate this capability on a budget.

His antenna consists of a salvaged Winegard Carryout Anser GM-5000 automatic satellite dome built for RV motor homes. The dish carries an LNB that radiates an 850 MHz signal at 10.4 GHz, which is a perfect wavelength for weather radar. The SDR hardware can either be a HackRF or PlutoSDR. As the HackRF is only half-duplex, it uses pulsed timing, whereas the full-duplex PlutoSDR uses a continuous FMCW chirp. Open-source Python software processes the results, producing a live radar display showing color-scaled reflectivity.

Importantly, Koakno addresses the licensing concerns around this project. He notes there are clauses in the amateur radio FCC legislation that support the use of automatically controlled beacons for the observation of propagation, and experimental activities in the 3cm 10.0 - 10.5 GHz amateur radio band, but he is not an attorney, so this activity may still exist in a grey area.

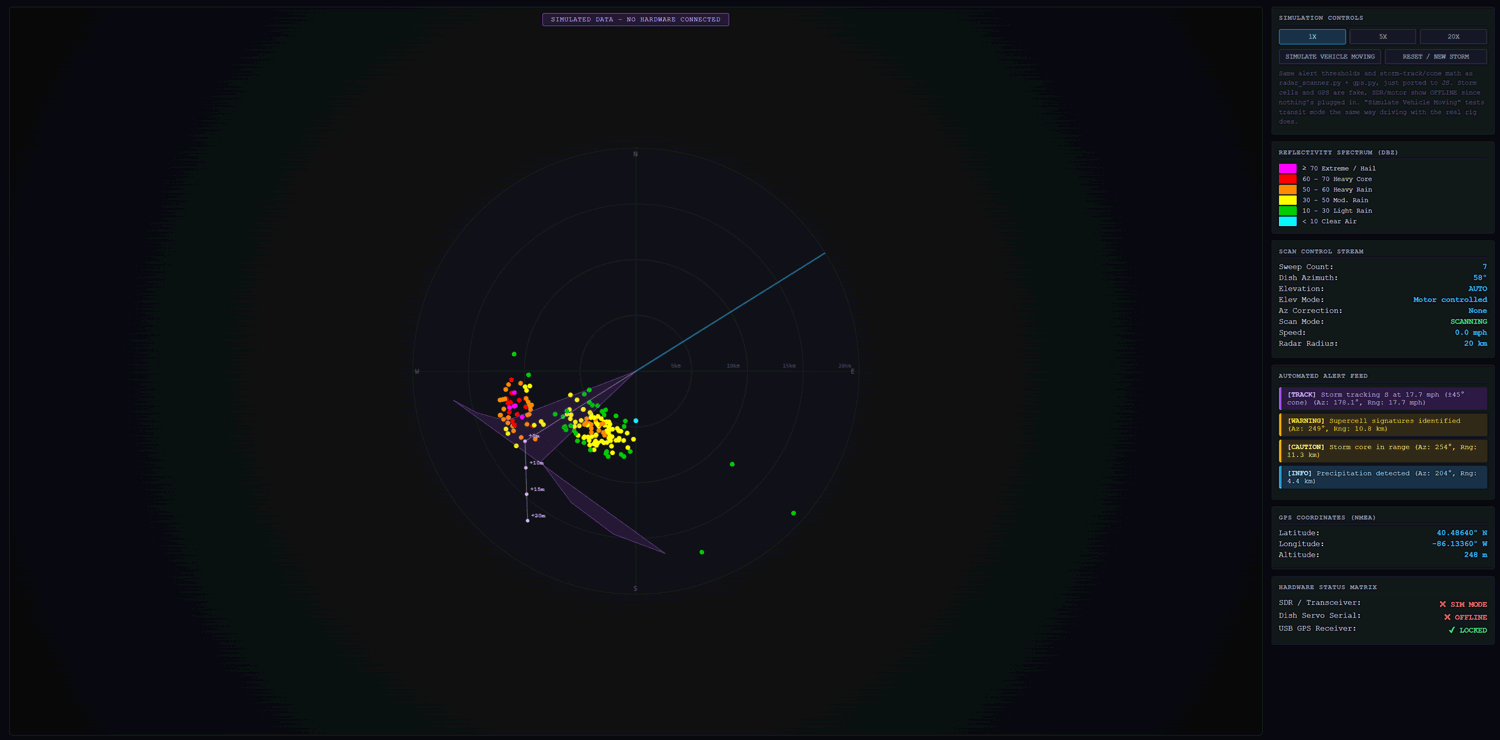

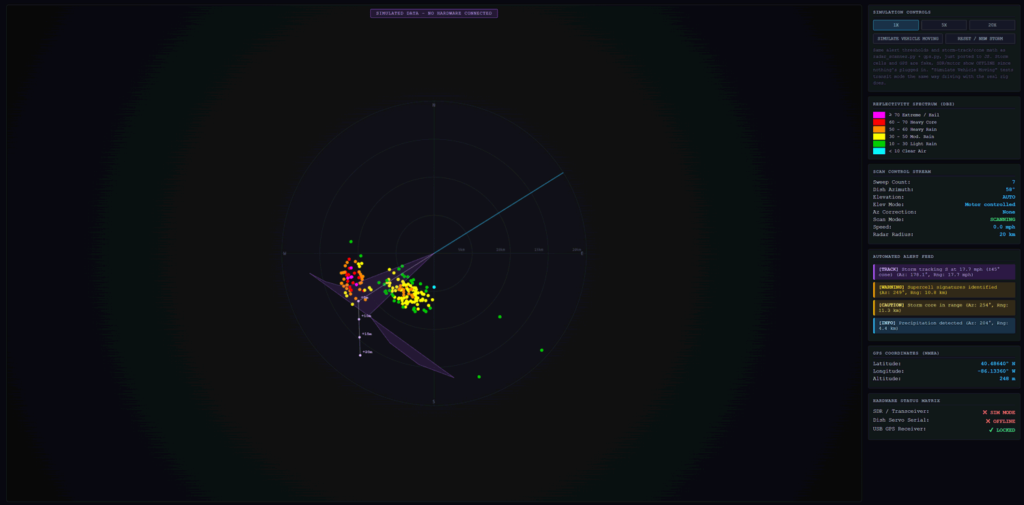

The screenshot below was generated via the simulation the software provides for testing the UI.
