New ADS-B Filter with Built in Bias Tee Available

Adam who is the manufacturer of the popular LNA4ALL low noise amplifier (LNA) that is commonly used with the RTL-SDR has come out with a new product for ADS-B enthusiasts. The product is an ADS-B filter with a built in bias tee for providing phantom power. Adam previously sold an older version of the ADS-B filter that came without the bias tee.

The bias tee allows you to inject DC power into the coaxial cable in order to easily power an LNA (like the LNA4ALL) or other device that is placed near the antenna. The antenna could be far away from a power source, such as on your roof or up a mast. It ensures DC power reaches the LNA, but at the same time does not enter the RTL-SDR dongle, as DC current on the antenna input could destroy the RTL-SDR. For best performance it is recommended to use an LNA near the antenna, especially if you have a long run of coaxial cable between the antenna and RTL-SDR.

The filter uses Low Temperature Co-fired Ceramics (LTCC) type components as opposed to the seemingly more commonly used SAW and microstrip filters. Adam writes that each type of filter has its tradeoffs, but he believes the LTCC filter is the best for this application.

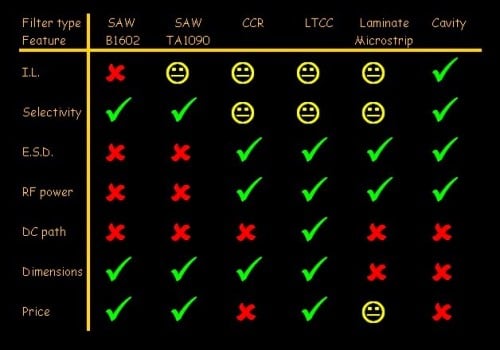

Comparison between different filter types.
Comparison between different filter types.

The insertion loss of the filter in the pass band is about 2.4 dB and the filter will significantly attenuate broadcast band FM, TV stations, WiFi and 1.8 GHz+ cell phones. However, it does not do so well with 950 MHz cell towers and possible radar on 1.2-1.3 GHz as the LTCC filter is not as sharp as a SAW filter. In Adams own tests he shows that the addition of the filter improves ADS-B decoding performance by about 20%, but the improvement you see will vary greatly with your RF environment.

The filter is currently selling for 20 Euros + 5 Euros shipping (~$28 USD).

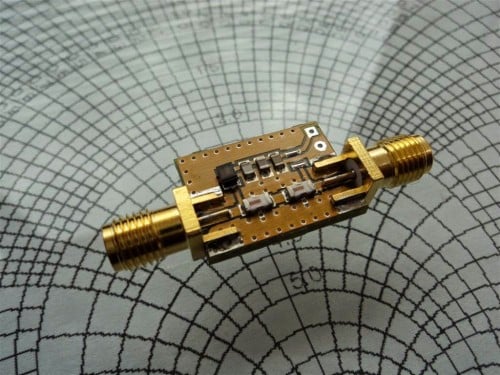

ADS-B LTCC Filter with Bias Tee
