Analyzing 433 MHz Transmitters with the RTL-SDR

Over on his blog, Yashin has written a post showing how to analyze 433 MHz transmitters using several methods. Devices that transmit using low power 433 MHz are common and often include devices such as weather monitors, power monitors and alarm sensors.

To show his analysis methods Yashin used an ASK modulated FS1000A 433 MHz transmitter connected to an Arduino Teensy microcontroller. He first uses GQRX and baudline together with an RTL-SDR in Kali Linux to test that the transmitter is working and to visually inspect the RF spectrum. Then he shows how to use GNU Radio to receive the 433 MHz transmitter and how to record an audio file. The final tool he shows how to use is rtl_433 which will automatically decode the data into binary strings using the analysis option.

ASK 433 MHz Transmitter
ASK 433 MHz Transmitter

Using an RTL-SDR and RTL_433 to Decode Various Devices

Over on his blog, Gough Lui has posted about his experiences with decoding various ASK/OOK devices on the unlicenced 433 MHz ISM band using an RTL-SDR and the command line program rtl_433.

Gough shows how he was able to receive and decode the data from an Aldi weather station device and a wireless doorbell transmitter. He also was able to modify the rtl_433 code slightly to produce a CSV log file of the temperatures that were received and decoded from the weather station.

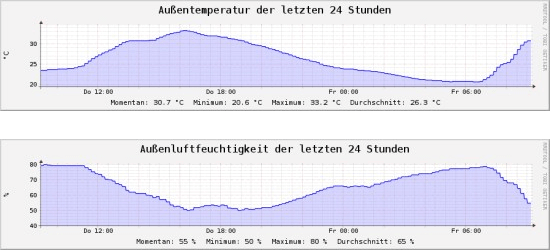

rtl_433 output of the weather station
rtl_433 output of the weather station
